TerraVue™ roof system is an insulated metal roof deck that transforms how commercial and industrial flat roofing is built. Combining steel deck, vapor barrier, ISO insulation, and cover board into one factory-assembled panel. TerraVue simplifies installation while ensuring long-term performance and sustainability. A field-applied TPO or PVC membrane completes the system, providing a seamless, weather-resistant finish for low-slope roofing applications.
TerraVue delivers a composite roof panel system for data centers, warehouses, manufacturing plants, and commercial facilities. It can accelerate installation, minimizes jobsite coordination, and reduces material usage. Designed to meet stringent roof code requirements, it’s the next evolution in energy-efficient roofing and sustainable construction.

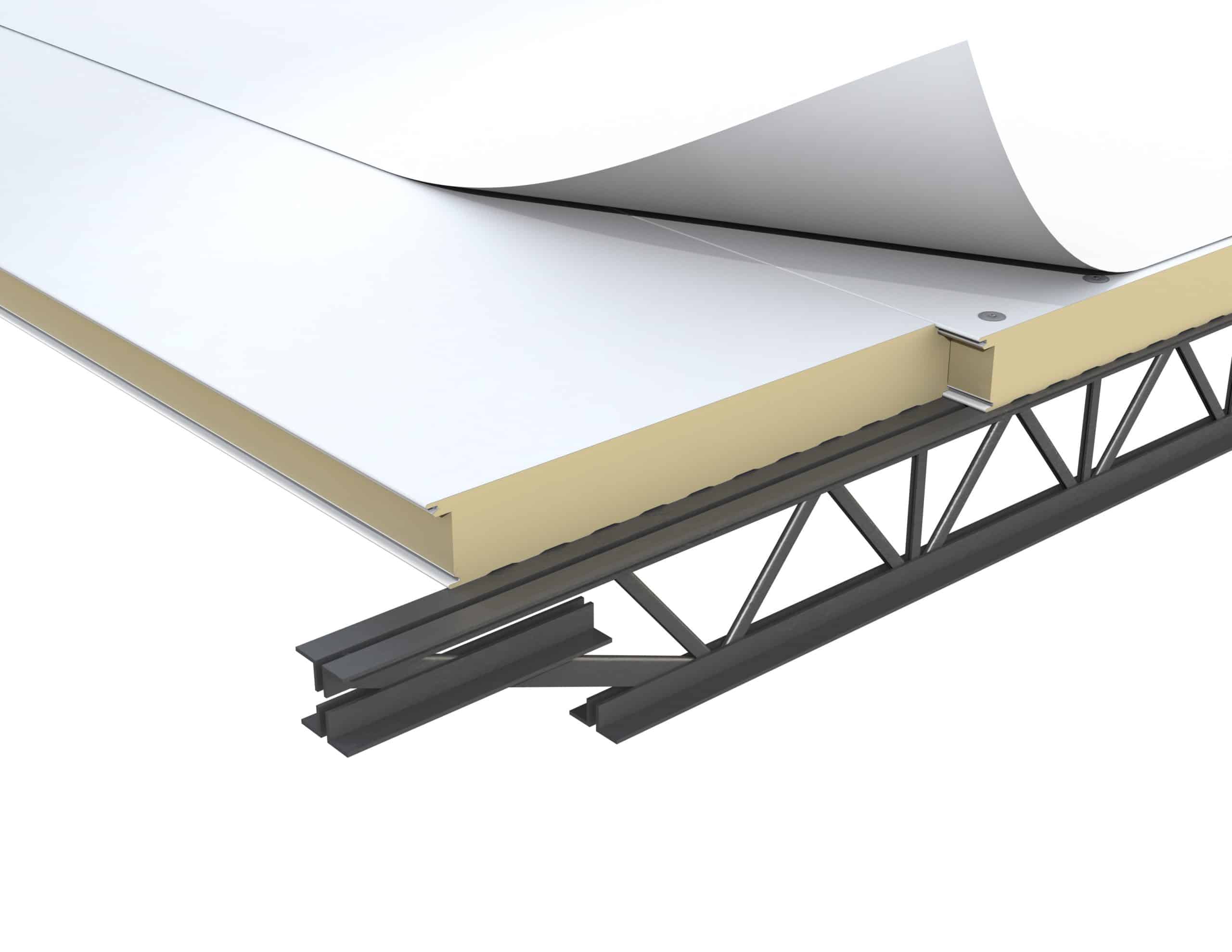

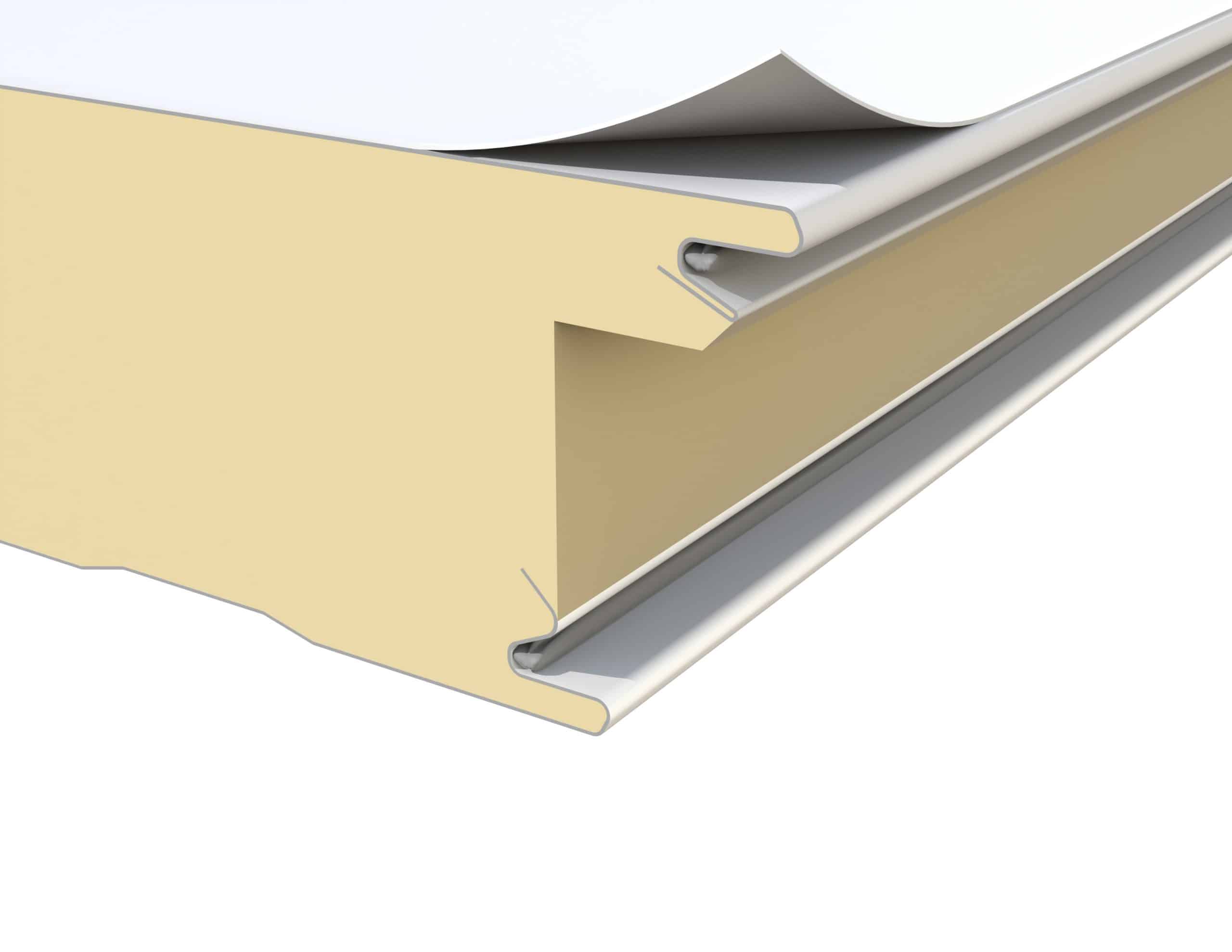

TerraVue integrates multiple roofing layers, including steel deck, vapor barrier, insulation, and cover board. This creates one durable, insulated roof panel for faster installation and cleaner coordination. Each assembly is tested with field applied TPO and PVC single-ply roof membranes to ensure consistent, reliable results for flat roof systems and low-slope commercial roofs.

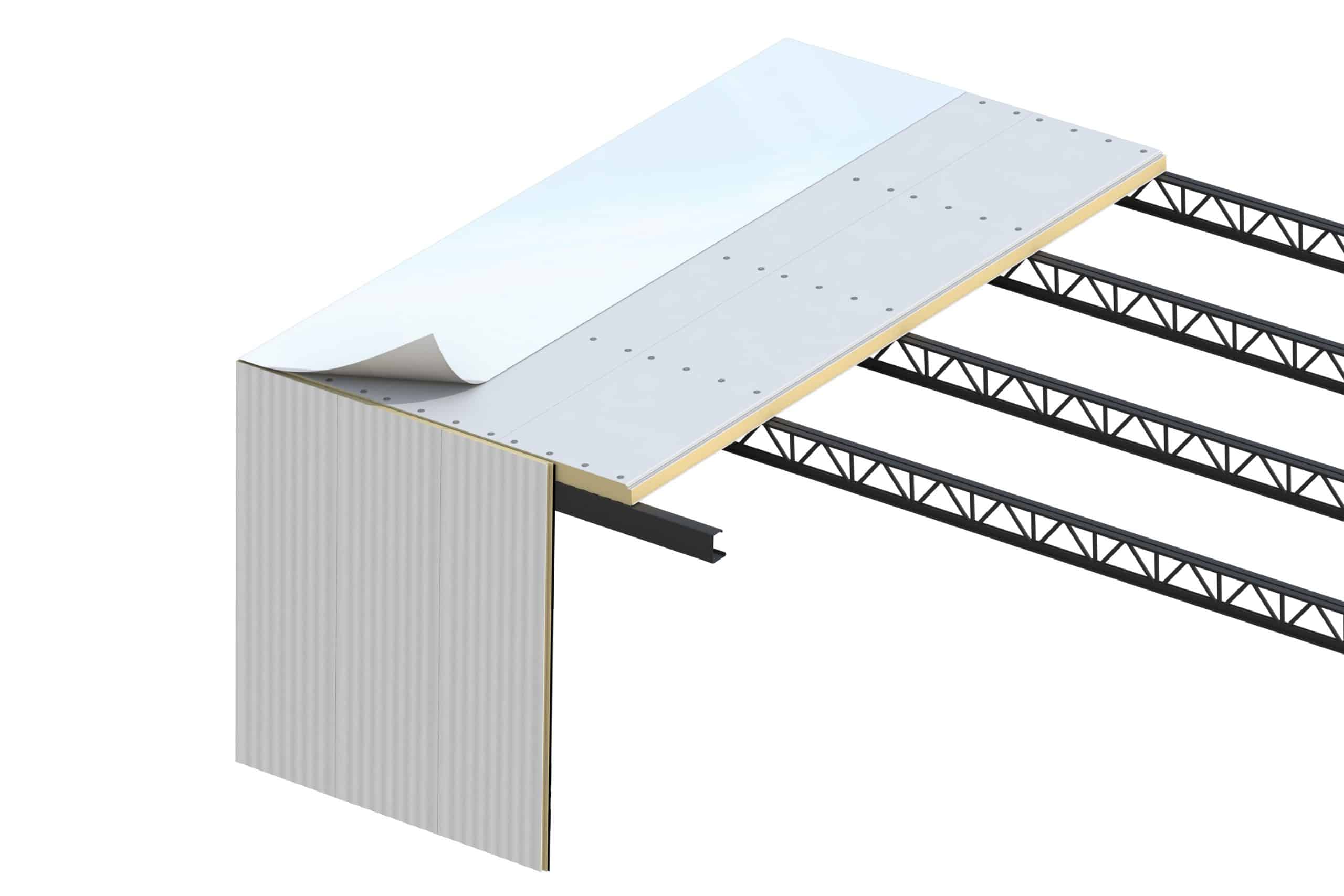

Available in fully adhered or mechanically attached configurations to minimize penetrations and simplify installation across different commercial flat roof types. By reducing materials, deliveries, and trade overlap, TerraVue helps minimize project costs while promoting green roof systems and energy savings over the building’s lifespan.
TerraVue has two structural options, diaphragm and non-diaphragm, providing strength and flexibility to meet complex design requirements. It is ideal for flat roof replacement, new construction, and industrial roofing upgrades.
This versatile system supports:
4″ [102mm]
5″ [127mm]
6″ [152mm]
8″ [203mm]
35.9 [U=0.028]
44.8 [U=0.022]
53.8 [U=0.019]
71.7 [U=0.014]
44″ [1,118mm]
8’0″ [2.4m] to 53’0″ [16.2]
For TPO: Fully adhered: Min: 1/4:12 and Max: 1/2:12; Mechanically attached: Min: 1/4:12 and Max: 1:12.
For PVC: Fully adhered or Mechanically attached: Min: 1/4:12 and Max: 2:12
