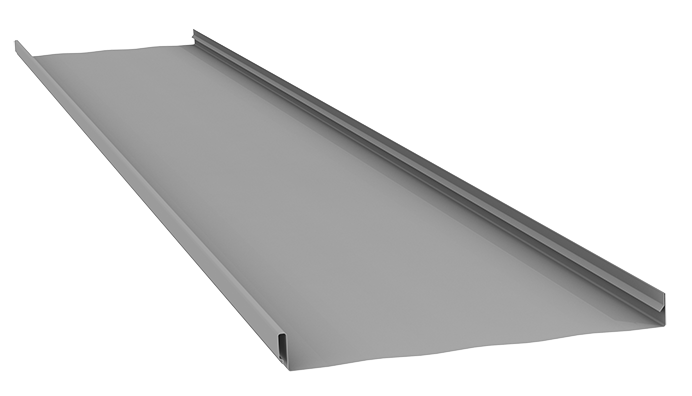

SDP 175 is a structural standing seam panel. The panel has a 1-3/4” high seam that snaps together over concealed clips. Recommended slopes are 3”:12” and greater. It may be installed over open purlins, on plywood deck, or on rigid foam insulation over steel deck. Snap-together seam reduces installation time and cost. Standing seam appearance for architectural applications. Does not require special crimper and seamer tools. The SDP 175 panel is available in (3) three pan profiles: Striated, Pencil Bead and Planked.
Standard:
9’-38’ [2.74m-11.582m]
16″ [406mm]
18″ [457mm]
1-3/4″ [44mm]
3:12 [76:305] min.
Galvalume
Galvanized
Galvalume Plus
